-1. XCMG 3 Tons Heavy Construction Machinery Payloader Main Detail.
LW300FN XCMG 3 tons heavy construction machinery payloader could used for all kind of Jobs, such as transport construction and mining material, the bucket also have the different bucket could optional, like rock bucket for big stone, standard bucket for sand, gravel even for grain etc.
| Description | Unit | Parameter value |
| Rated operating load | kg | 3000 |
| Bucket capacity | m³ | 1.5~2.5 |
| Machine weight | kg | 10600±200 |
| Dump clearance at maximum lift | mm | 2770~3260 |
| Reach at maximum lift | mm | 1010~1210 |
| Wheel base | mm | 2600 |
| Tread | mm | 1850 |
| Height of hinge at maximum lift height | mm | 3830 |
| Working height(fully lifted) | mm | 4870 |
| Max.breakout force | kN | 130 |
| Max.horse power | kN | 95 |
| Hydraulic cycle time-raise | s | 5.5 |
| Total hydraulic cycle time | s | 10 |
| Min. turning radius over tyres | mm | 5165 |
| Articulation angle | ° | 35±1 |
| Gradeability | ° | 28 |
| Tyre size | | 17.5-25-12PR |
| Overall machine dimension L×W×H | mm | 7050×2482×3118 |
| Model | | WP6G125E22 |
| Emission standards | | Emission 2 |
| Rated Power/Speed | kW/rpm | 92/2200 |
| Fuel Tank | L | 170 |
| Hydraulic Tank | L | 170 |
| Ⅰ-gear (F/R) | km/h | 8/10 |
| Ⅱ-gear (F/R) | km/h | 13/30 |
| Ⅲ-gear (F) | km/h | 24/- |
| Ⅳ-gear (F) | km/h | 40/- |
-2. XCMG 3 Tons Heavy Construction Machinery Payloader Detail Picture Advantage.
XCMG 3 tons heavy construction machinery payloader adopts WEICHAI engine, the power is increased to 92kw, environmental protection, energy saving, strong power, and meets the EURO II emission standard.
XCMG 3 tons heavy construction machinery payloader with service brake and parking brake; service brake adopts air-over oil caliper disc four-wheel brake, which has the advantages of stable braking, safe and reliable, simple structure and convenient maintenance.
Product Tags:
|
|

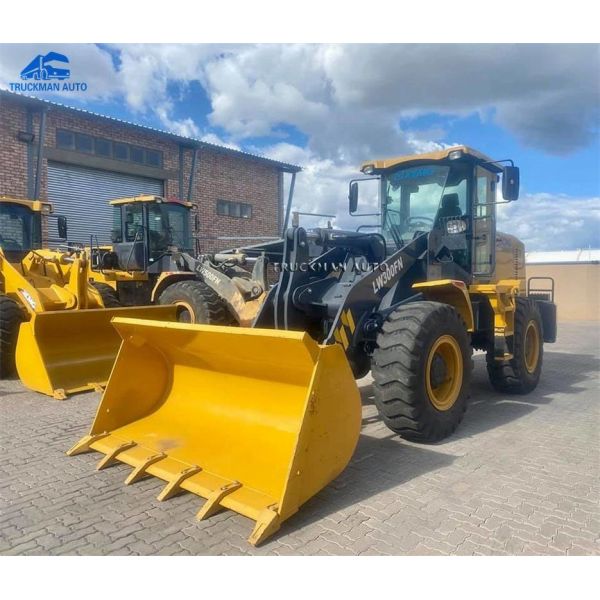

LW300FN XCMG 3 Tons Heavy Construction Machinery Payloader Images
|
